SMC80Z120-300 CZ Purlin Roll Forming Machine
CZ Machine Configurations | Model: SMC80/Z120-300
1. This machine is the industry's best value in a Rapid Inter-changeable CZ Purlin Roll forming System.
2. Capable of producing the standard industry range of Cee, Zee, U shapes 80-300mm.
3. Providing programmable modular hydraulic punching and cutting.
4. Rapid C/Z profiles and its size changeover times under 5 minutes.
5. European quality control, machine surface adopts podwer coating, coating before assembly.
6. Delivery capacity 220-300sets per year, the largest and most professional manufacturer in China.
Decoiling – Feeding - Flattening — Punching - Cutting - Lip forming - Flange forming - Angle forming – Straightening - Stacking

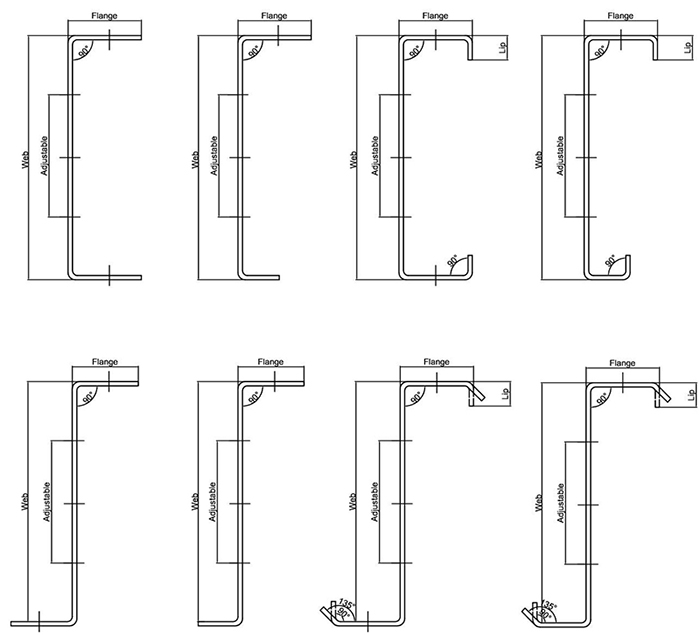

Profiles:
|
Profile |
Web |
Flange |
Lip |
Thickness |
|
C |
80-300mm |
40-80mm |
10-25mm |
1.2-3.2mm |
|
Z |
120-300mm |
40-80mm |
10-25mm |
1.2-3.2mm |
|
Yield strength |
195Mpa |
235Mpa |
345Mpa |
550Mpa |
|
Thickness |
1.2mm-3.2mm |
1.2mm-3.0mm |
1.2mm-2.7mm |
1.2mm-2.5mm |
|
Slotted hole |
Round hole |
|
14x26mm(HOR.) |
D14mm |
|
16x26mm(HOR.) |
D16mm |
|
Equipment series |
Pre-punch Pre-cut |
|
Phase/voltage/frequency |
Customize |
|
Driven type |
Servo-motor |
|
CZ inter-change type |
Manual |
|
Size inter-change type |
Electric |
|
Post-cutter |
Optional |
|
Flange punch |
Optional |
|
Decoiler |
Manual decoiler |
|
|
Hydraulic decoiler (Optional) |
|
Production capacity |
Maximum 35m/min |
|
Length tolerance |
±1.5mm |
|
Note |
Minimum purlin length 2m |
| Item |
Description |
Quantity |
|
1 |
Decoiler |
1 Nos |
|
2 |
Main roll forming machine with punching and cutting units |
1 Nos |
|
3 |
Hydraulic power station |
1 Nos |
|
4 |
Control cabinet |
1 Nos |
|
5 |
Spares and tools |
1 Nos |
|
6 |
Out-put table |
2 Nos |
